NEW QUESTION 12
A customer has just configured Avaya Aura Media Server (AAMS) on their Avaya Aura Communication Manager (CM). They are saying that the AAMS is never being used by CM, but instead is always using the G450 gateways to provide DSP resources.
The customer has checked the status of the Media Server and the Signaling Group and both show In-Service. They have also checked that a Media Server License is installed on WebLM, and the status of the Media Server is showing Element Status as being normal.
Which statement describes the cause of this problem?
- A. The VoIP Channel License Limit has not been set on the media-server CM SAT screen.
- B. The Dedicated VoIP Channel Licenses has not been set on the media-server CM SAT screen.
- C. The CM license has no CM Media Server VoIP Channels.
- D. No trunk-group members have been configured,
Answer: C
NEW QUESTION 13
A remote worker using the Avaya Equinox on the smart mobile telephone obtains a private IP address delivered from the corporate network over WiFi when in range of the wireless hotspot. When the remote worker is out of range of the corporate WiFi it obtains a Public IP address via the 3G/4G mobile Service Provider.
When roaming from the public network to the corporate private network and vice versa, which strategy prevents the user from having to change the SIP Proxy Server address in the smartphone?
- A. Split Horizon DNS with FQDN
- B. Avaya Session Border Controller for Enterprise (SBCE) public IP-address
- C. Network Address Translation (NAT)
- D. Virtual Private Network (VPN)
Answer: A
NEW QUESTION 14
Which three statements about media processing resources (DSPs) are true? (Choose three.)
- A. Two-party calls originated by H.323 stations, trunks, or media gateways, and terminated by SIP stations or
trunks, cannot shuffle. - B. Two-party calls originated by SIP stations or trunks, and terminated by H.323 trunks, media gateways, or
other vendors' H.323 stations, will typically shuffle if Communications Manager (CM) is configured to do so. - C. H.323-H.323 two-party calls will always shuffle to establish a direct media path if Communications Manager
(CM) is configured to do so. - D. SIP-SIP two-party calls will always use SIP Direct Media if Communication Manager (CM) is configured to
do so. - E. If a direct media path cannot be established between two IP endpoints the call will fail from release 7.0.
Answer: A,D,E
NEW QUESTION 15
You notice that the Entity-Link between your Session Manager and Communication Manager is down.
From Communications Manager, which two commands are used to verify the health of this SIP link? (Choose two.)
- A. list trace station
- B. status health
- C. status trunk
- D. status signaling group
- E. statapp
Answer: C,E
Explanation:
Explanation/Reference:
NEW QUESTION 16
Which two methods are used to obtain Avaya Aura Communication Manager (CM)software version information? (Choose two.)
- A. In Linux, issue the swversion. command.
- B. In Linux, issue the software version show.command.
- C. In Avaya Aura System Manager (SMGR), navigate to Services > Inventory > Managed Elements.
- D. In CM SAT, issue the display software version. command.
- E. In CM SMI, navigate to Administration > Server Maintenance > Server > Software Version.
Answer: A,E
NEW QUESTION 17
How can you view the entire contents of the current Avaya Aura@ Communication Manager (CM) call processing log file?
- A. by using the Linux cd to /var/log/Avaya and cat callproc.log commands
- B. by using the Linux cd to /var/log/esc and ls -l commands to find current <log filename>; cat <log file name>
- C. by using the CM SAT to enter the list callp log all commands
- D. by using the Linux cd to /var/log/Avaya and cat ecs.log commands
- E. by using the CM SAT to enter the display callproc log all command
Answer: B
NEW QUESTION 18
What information is associated with System manager alarms? (Choose three.)
- A. Time Stamp
- B. Event ID
- C. Service Affecting Y/N
- D. Severity
- E. SIP Domain
Answer: A,B,D
NEW QUESTION 19
When comparing two Remote Worker SIP clients, one is an AvayaCommunicator soft client and the other is a 96X1SIP hardphone, which statement is true?
- A. If required, Avaya Communicator and 96X1 clients will automatically upgrade themselves from software stored on the SBCE.
- B. Both Avaya Communicator and 96X1SIP clients register with SM via SBCE and receive their SIP Controller List by PPM download.
- C. AvayaCommunicator registers with SM via SBCE whereas the 96X1 telephone registers with CM via SBCE.
- D. The Avaya Communicator receives itsSIP Controller List via 46xxsettings.txt file download, whereas the 96x1 receives its SIP Controller List by PPM download.
Answer: D
NEW QUESTION 20
In Avaya Aura Communication Manager (CM), what are three valid formats of the list trace command?
(Choose three.)
- A. List trace ras ip-address 135.60.232.213
- B. List trace previous
- C. List trace tac 701
- D. List trace 1031711
- E. List trace next
Answer: A,B,C
NEW QUESTION 21
Which event packages would you expect to see an AST Endpoint subscribe to?
- A. avaya-ccs-profile, network status and message-summary dialog
- B. dialog, avaya-cm-feature-status, avaya-ccs-profile, reg and message
- C. dialog, avaya-cm-feature-status, avaya-ccs-profile and network status
- D. entity links, avaya-cm-feature-status, avaya-ccs-profile and reg
- E. avaya-cm-feature-status, entity links, reg and message-summary
Answer: B
NEW QUESTION 22
How can an inactive SM100 be reset?
- A. Restart Services on the Avaya Session Border Controller for Enterprise (SBCE).
- B. Run the resetSM100 command from RHEL Command Line Interface of Avaya Aura Session Manager (SM)
- C. Click the repair button on the Replication page with the affected Avaya Aura Session Manager (SM) selected.
- D. Click the 'Reset' button on the Security Module Status page in Avaya Aura System Manager (SMGR).
Answer: D
NEW QUESTION 23
SIP (AST) user 1011111 and SIP (AST) user 1011112 are both based on the same Session Manager with access to a CM Evolution server. Given the following actions:
1. Session Manager searches for the called party in the SIP registry, finds it, registers it and routes the call to it.
2. SIP user 1011111 calls SIP user 1011112 and an Invite request is sent to Session Manager.
3. Session Manager verifies SIP user 1011111 in the SIP registry and authenticates it. Session Manager checks the SIP user's profile for sequenced applications and (in this example) routes the request to Communication Manager.
4. Endpoints negotiate codecs and media and RTP is sent between endpoints.
5. Communication Manager receives the request from Session Manager, carries out full-call model processing for both endpoints and routes the call back to Session Manager.
If 1011111 makes a call to 1011112, in which order will the actions take place?
- A. 2, 3, 5, 4, 1
- B. 2, 1, 3, 5, 4
- C. 2, 3, 5, 1, 4
- D. 2, 3, 1, 4, 5
Answer: A
Explanation:
Explanation/Reference:
NEW QUESTION 24
Refer to the exhibit.
A SIP user is calling an H.323 user.
In this call flow, during which phase does the Avaya Communication Manager (CM) Evolution Server handle the processing for each endpoint?
- A. SIP endpoint in originating phase, H.323 endpoint in terminating phase
- B. both endpoints in the terminating phase
- C. both endpoints in the originating phase
- D. H.323 endpoint in originating phase, SIP endpoint in terminating phase
Answer: A
Explanation:
Explanation/Reference:
NEW QUESTION 25
Refer to the Exhibit.
Which two statements are true about a call from AST 1011111 to AST 1011112? (Choose two.)
- A. In step 2, the Avaya Aura Session Manager (SM) uses a dial pattern and routing policy to route the call to Avaya Aura Communication Manager (CM).
- B. In step 2, Avaya Aura Session Manager (SM) matches 1011111 with a Communication Profile, and uses the defined Originating Application Sequence to route the call to Avaya Aura Communication Manager.
- C. In step 1, when 1011111 draws dial tone it sends an Invite to Avaya Aura Session Manager (SM) with the Request URI containing 1011111.
- D. In step 3, Avaya Aura Communication Manager (CM) sends SIP Options to 1011112 looking for a 200 ok response to check it is reachable.
Answer: B,C
NEW QUESTION 26
How can an inactive SM100 be reset?
- A. Click the 'Reset' button on the Security Module Status page in Avaya Aura System Manager (SMGR).
- B. Restart Services on the Avaya Session Border Controller for Enterprise (SBCE).
- C. Run the resetSM100 command from RHEL Command Line Interface of Avaya Aura Session Manager (SM)
- D. Click the repair button on the Replication page with the affected Avaya Aura Session Manager (SM) selected.
Answer: C
NEW QUESTION 27
When a 96xx telephone with SIP firmware boots up, it goes through a number of steps. These steps include:
1. Phone Registration
2. Download PPM.
3. Obtain IP Address and http/https server address from DHCP Server.
4. Check if firmware upgrade is required and download 46xxsettings.txt file.
5. Send Subscribe (avaya-cm-feature-status) to Avaya Aura Communication Manager (CM) via Avaya Aura Session Manager (SM).
What is the correct sequence of these steps?
- A. 4, 3, 1, 2, 5
- B. 3, 4, 2, 1, 5
- C. 3, 4, 1, 5, 2
- D. 3, 5, 1, 2, 4
Answer: A
Explanation:
Explanation/Reference:
NEW QUESTION 28

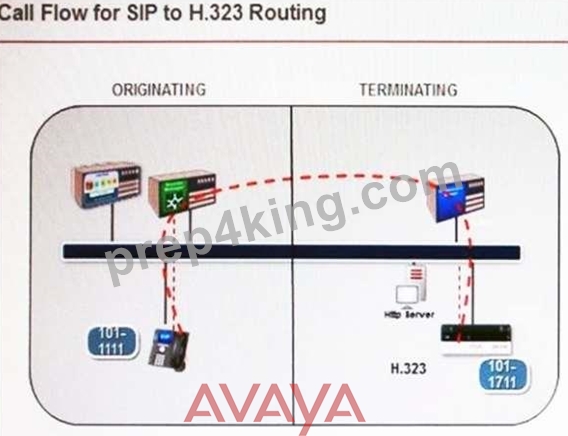

Refer to the exhibit.
A SIP user is calling an H.323 user.
In this call flow, during which phase does the Avaya Communication Manager (CM) Evolution Server handle the processing for each endpoint?
- A. SIP endpoint in originating phase, H.323 endpoint in terminating phase
- B. both endpoints in the terminating phase
- C. both endpoints in the originating phase
- D. H.323 endpoint in originating phase, SIP endpoint in terminating phase
Answer: A
NEW QUESTION 29
You are preparing to enable EASG to provide Avaya Services local and remote access for performing support and system optimization.
What are the two methods to enable EASG during the implementation? (Choose two.)
- A. Using SMGR web GUI, check the "Enable EASG" check box on the desired component in the Inventory/Manage Elements screen
- B. During the OVA deployment
- C. Open a ticket to Avaya services and request to enable it
- D. Using the SDM after the deployment
- E. Using the CLI command EASGManage after deployment
Answer: A,E
NEW QUESTION 30
Why is the initial REGISTER request from a SIP endpoint rejected by Avaya Aura Session Manager (SM)?
- A. System Manager needs time to look-up the Communication Address in its database.
- B. It must confirm the reliable delivery of this initial REGISTER request.
- C. The initial REGISTER request is rejected only if the user provided the wrong security code/password.
- D. The initial REGISTER request does not contain authentication details.
Answer: C
NEW QUESTION 31
......
